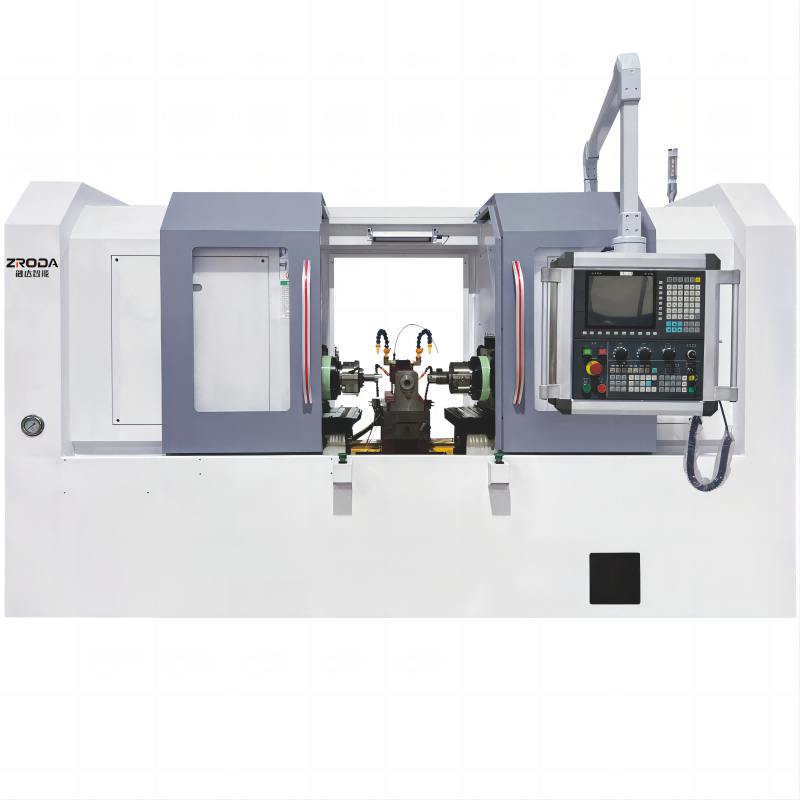

Gate Valve Sealing Surface Machine

Application: Suitable for 3/8″-2″gate valve body and valve plate.

Description

Item		Parameter
Capability		Sealing surfaceprocessing of 1/2″-2″gate valve body and valve plate
No.Of spindle		2 SET Spindle
Processing material		Bronze,brass,stainles steel
Capacity		12~30s/Pcs
Spindle speed		300-1500rpm
Travel	Z-Direction	≥150mm
Travel	X-Direction	≥15mm
Machine tool control method	Control System	Taiwan Yitu
Fixture type		Hydraulic drive
Spindle drive mode		同服电机驱动
Driving mode of spindle motor		servo motor drive
X direction Motor Power		0.85KW*2 SET
Z direction Motor Power		0.85KW*2 SET
Power supply		AC380V/50HZ
Total power		11KW
Volume		2.6mx1.52mx1.75m
Weight		3500KG
Colour		The exterior protection is blue-gray white +orange red, and the bed feet are dark iron gray
Others	Cooling	Optonal mist coling and cuting fuid cooing
	Protection	Full protective sheet metal
