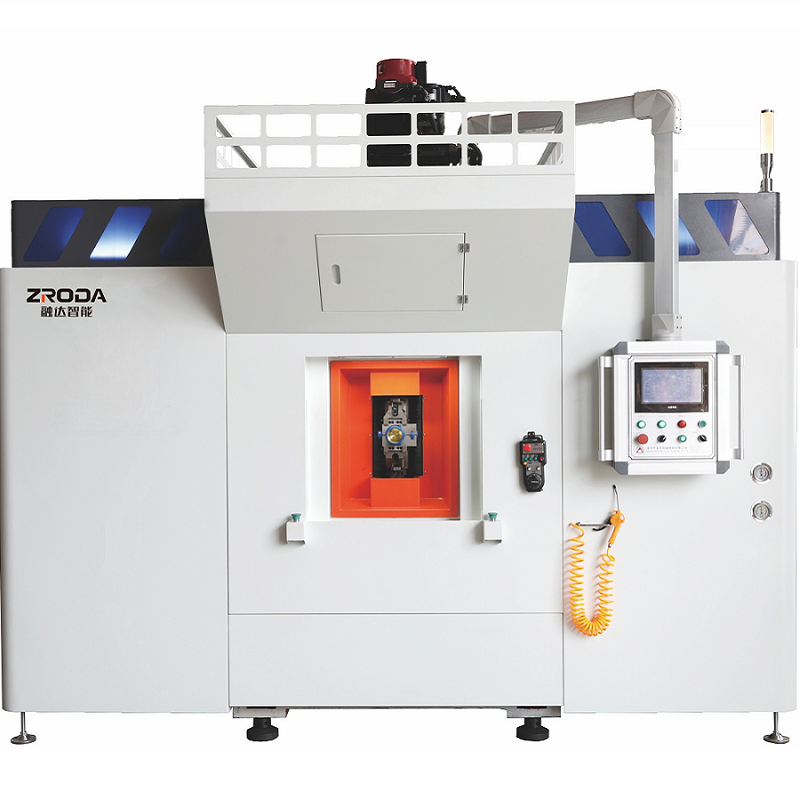

Servo Trunnion Rotary Transfer Machine

Servo Trunnion Rotary Transfer Machine

Serve Trunnion Rotary Transfer Machine is a special and efficient automatic production line for complex work-pieces to achieve high efficiency, high quality, economy and mass precision processing.

Description

● Application:Suitable for processing within 1/4″-1″valvehousing and other tri-branch parts.
● Power head distribution:According to the definition of products.
● Gripper:Synchronous hydraulic vice.
● Loading/unloading method:Manual loading/unloading.Robot or manipulator can be aplus.
● Tool cooling system:Water cooling,spraying.gas injection andother cooling methods
● Make the number of power head axles according to product features

Technical Parameters

  ● This machine tool adopts a simplified operation interface usingPCL or NC numerical control programming.
  ● Its structure employs the HT300 integral casting process with three stages of aging treatment:(1)tempering at 600°before rough machining,(2)tempering at 450 after rougn machining,and (3)vibration aging to ensure dimensional stablity and precision.
  ● The power head utilizes a high-precision spindle from a Taiwanese brand with Italian technology.The spindle bearings are imported from NSK/SKF,ensuring spindle accuracy of 0.003 mm.
  ● Application:pipe fitting,valves,automotive parts.
  ● Table operation mode:ATK-TV08-10HSP:8-index (servo turntable),1/8=1 second.
  ● Fixture type:hydraulic synchronous clamp selection of absolute coordinates.

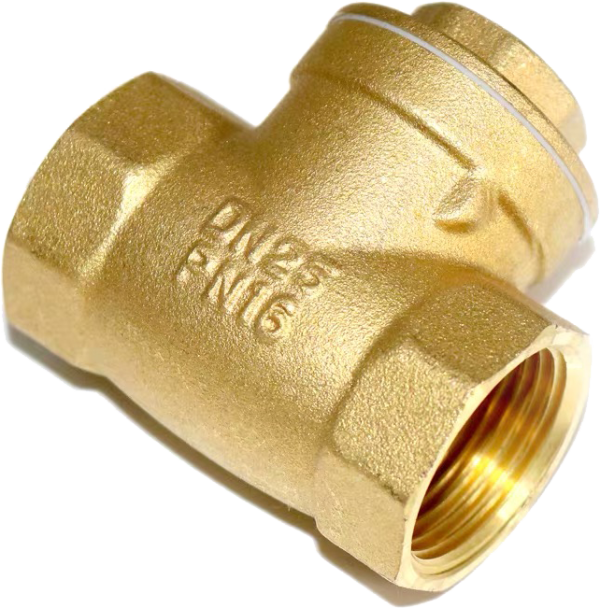

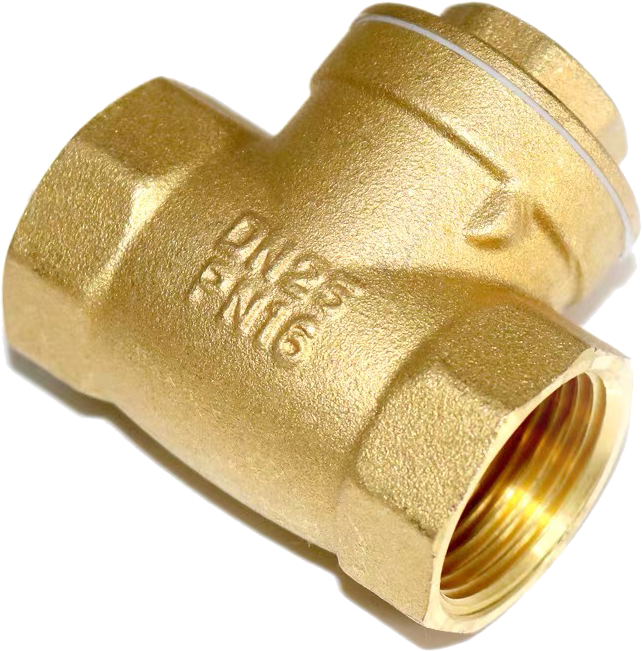

Applicable Scope

L
